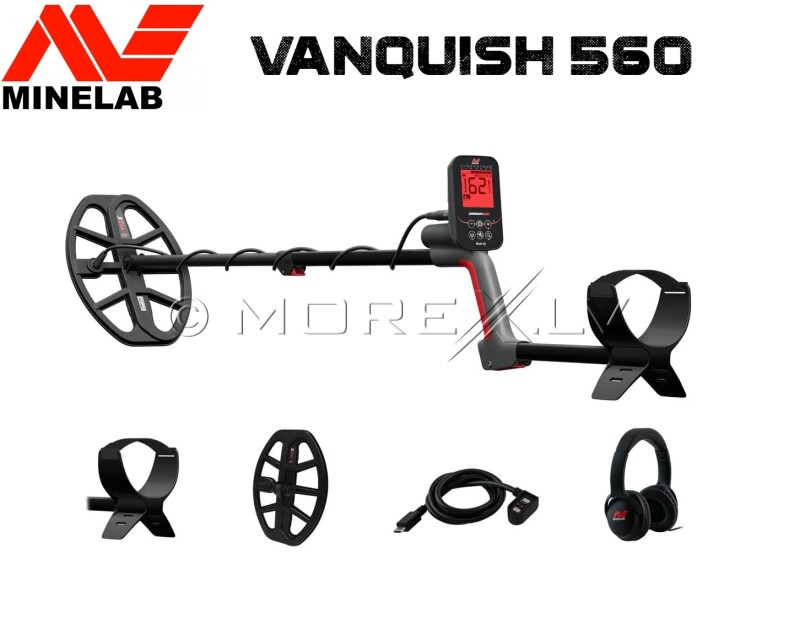

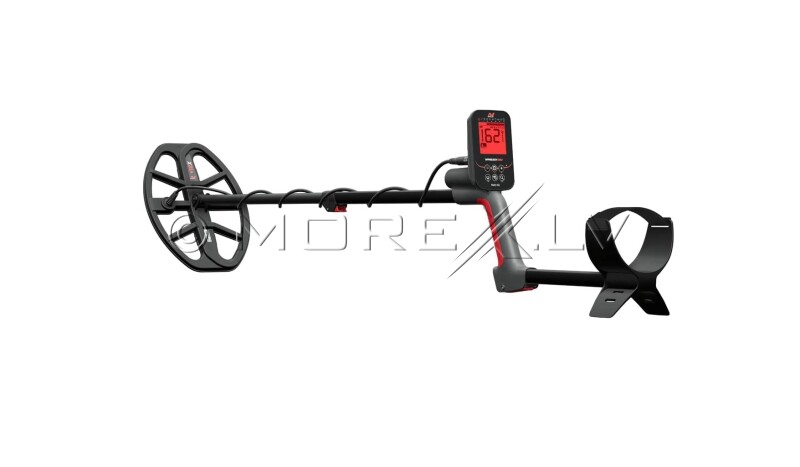

Metallidetektor Minelab Vanquish 560

The Vanquish 560 sets a higher standard in the series, delivering increased power, precision and control. Powered by Minelab's proven Multi-IQ technology, it detects across multiple frequencies simultaneously for accurate target response and efficient recovery across variable ground. The larger V12X coil increases ground coverage and sensitivity, while four levels of Iron Bias control, five target tones and handgrip vibration support isolation of valuable targets. IP68-rated and fully waterproof to 5 m, this lightweight and compact detector is ready for all terrains, any light, any conditions.

---

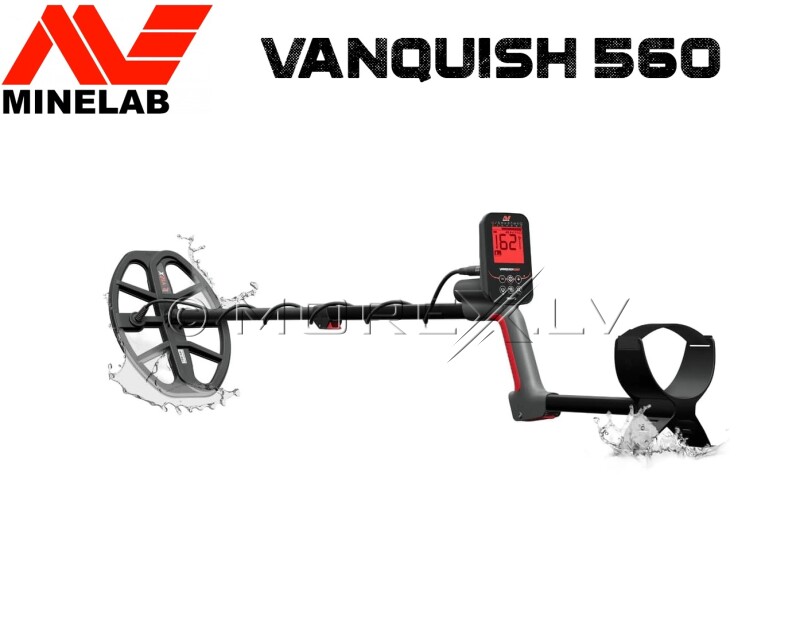

Fully Waterproof IP68-rated and fully submersible to 5 m. Reliable detection in creeks, wet sand, shorelines, and rain-soaked ground. No compromises.

Multi-IQ Technology Simultaneous multi-frequency scanning gives you the power of multiple detectors at once. No switching frequencies, no second-guessing. All metals, all soils, all the time.

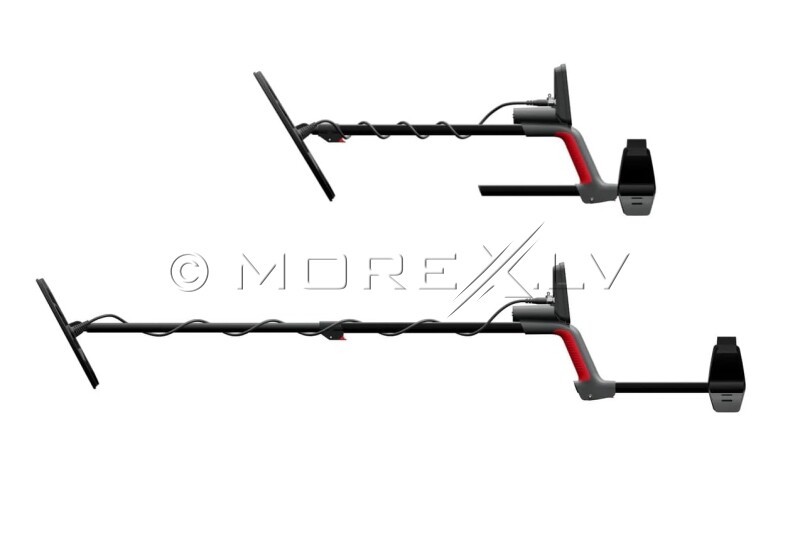

Lightweight and Compact Weighs only 1.26 kg. Collapses to 79 cm for easy transport. Quick to pack and go.

Smart Discrimination 30 discrimination segments and 119 Target IDs give you precise control over exactly which metals to accept or reject. 4-level Iron Bias gives maximum flexibility to filter ferrous trash in any ground condition.

Search Modes Four modes: Park, Field, Beach and a customisable User Profile. Cover every environment from busy parks and open fields to challenging shorelines. Save your own preferred settings in the User Profile for instant access.

All-Metal Shortcut Dedicated All-Metal shortcut gives you instant access to maximum detection sensitivity whenever you need it.

Volume and Target Tones 10 volume levels for both overall volume and ferrous tone response, and 5 target tones give greater control over how signals are heard. Adapt to any environment and distinguish targets with sharper audio separation.

Sensitivity and Depth Control 10 sensitivity levels and a 5-level depth indicator deliver advanced control over detector response. Detect faint signals or stabilise performance in difficult soils with confidence.

See in Any Light Red LED backlit display and built-in flashlight let you detect comfortably in low-light conditions. Keypad backlight included for full after-dark operation.

Advanced Target Feedback Handgrip vibration ensures you never miss a signal even in noisy environments. Bluetooth LE Audio with minimal sound delay and LC3 codec delivers rapid, accurate wireless audio through compatible headphones. Wired headphones included in the box.

Pinpoint Mode Zero in on the exact location of a target. Dig smaller, cleaner holes with precision.

Built-in Rechargeable Battery Internal lithium-ion battery delivers up to 10 hours of continuous runtime. Charges via included USB-C magnetic cable.

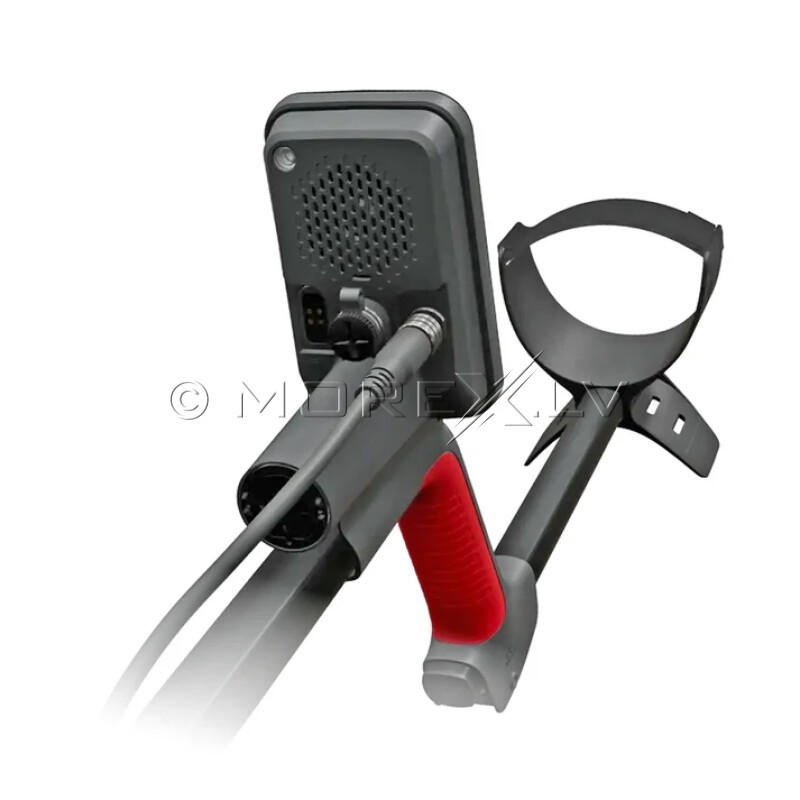

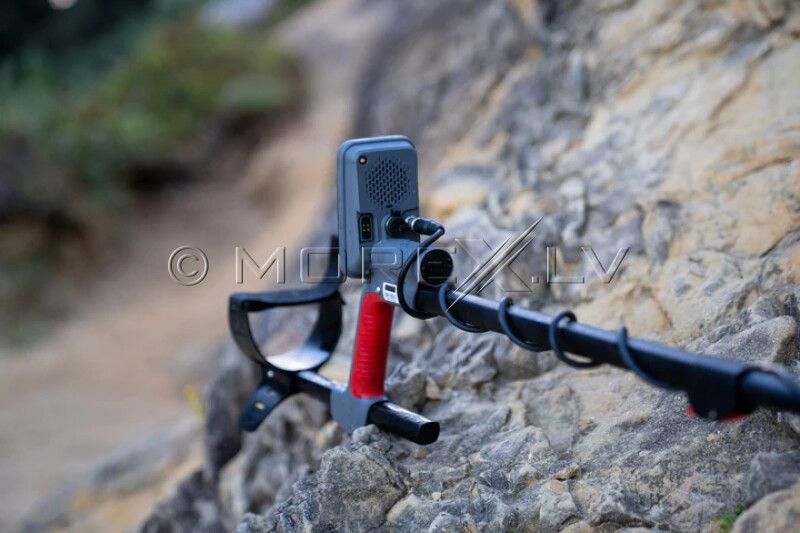

Rugged Build Aluminium and fibreglass S-bend shafts. IP68-rated housing. Built to handle demanding conditions session after session.

---

Technical Specifications

Search Modes	Park, Field, Beach, User Profile
All-Metal Shortcut	Yes
Custom User Profile	Yes
Frequency Technology	Multi-IQ® (simultaneous multi-frequency)
Noise Cancel	Auto
Sensitivity Levels	10
Target IDs	119 (Ferrous: -19-0 / Non-Ferrous: 1-99)
Discrimination Segments	30
Accept / Reject	Per Segment
Iron Bias	4 Levels
Depth Indicator	5 Levels
Target Tones	5
Volume Levels	10
Ferrous Volume	10 Levels
Pinpoint Mode	Yes
Wireless Audio	Bluetooth LE Audio (LC3 Codec)
Audio Output	Built-in speaker + 3.5 mm wired headphone jack + Bluetooth LE
Included Headphones	Wired headphones

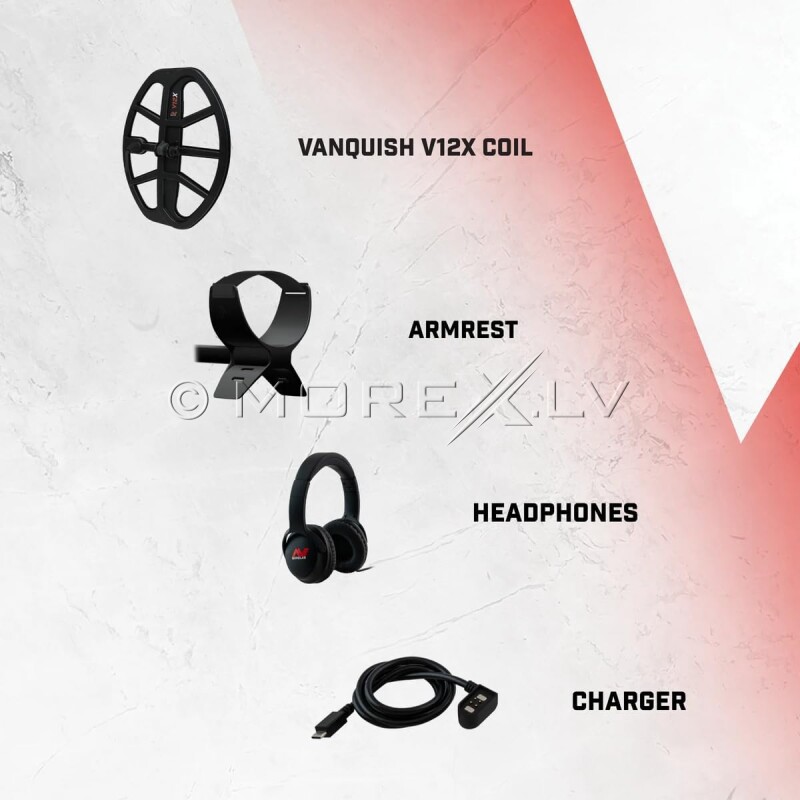

Supplied Coil	V12X 12"×9" Double-D (waterproof)
Battery	Internal Li-Ion rechargeable, up to 10 hrs

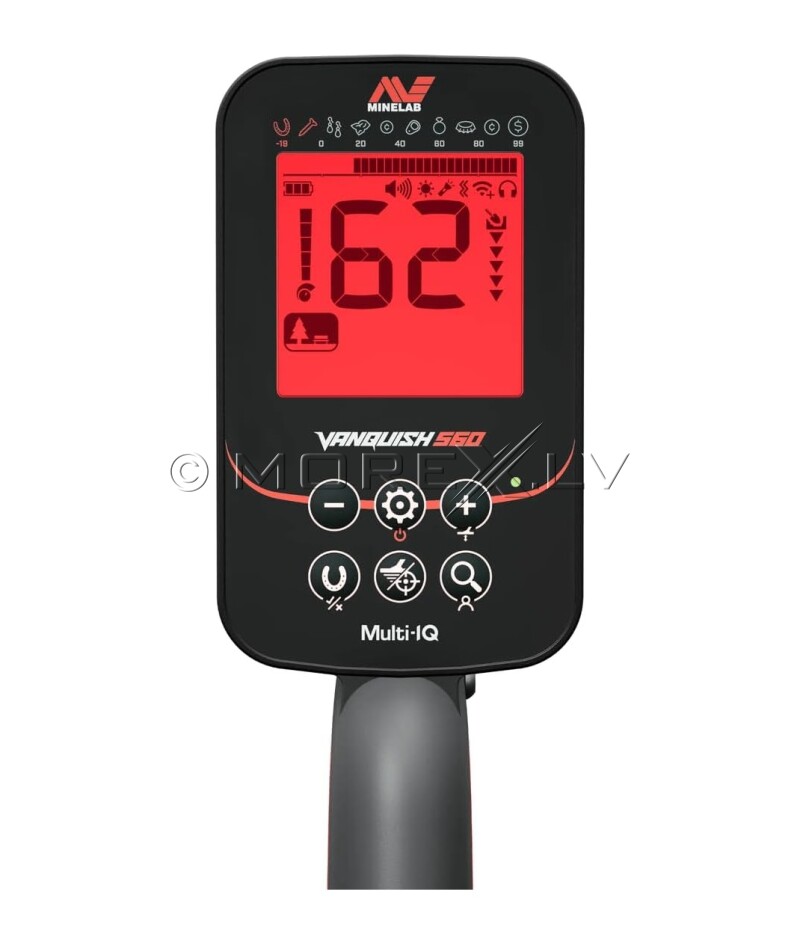

Display	Monochrome LCD with Red LED Backlight
Display Backlight	Yes (Off / Low / High)
Keypad Backlight	Yes
Flashlight	Yes
Vibration	Yes
Weight	1.26 kg
Length (extended)	142 cm
Length (collapsed)	79 cm
Waterproof Rating	IP68 up to 5 m
Operating Temperature	-10°C to +40°C
Warranty	3 years (control box and coil)
